Switching Power Supply
5W Series 8.5W Series 12W Series 15W Series 18W Series 28W Series 36W Series 65W Series 90W Series Changable AC plug Series
Product Input Plug Style

EUROPE
INPUT 230V AC 50Hz

UK
INPUT 230~240 50Hz

AUSTRALIA
INPUT 240V AC 50Hz

N. AMERICA
AC120V AC 60Hz

JAPAN
AC100V 50/60Hz

EN 50075

BS 1363

AS/NZS 3112

ANSIN/NEMA
WD 6-2002

ANSIN/NEMA
WD 6-2002

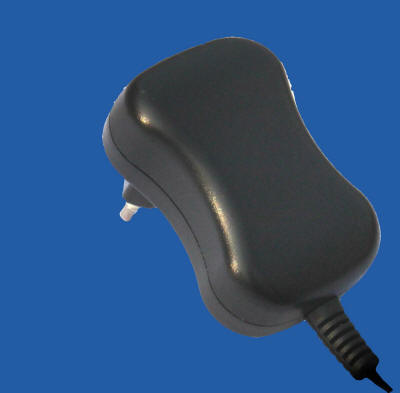

5W Series

1. Small size, streamlined, fully sealed, easy to carry.

2. Built-in over-voltage, over-current and short-circuit protection.

3. Wide range input: 100-240V, 50/60Hz

4. Rated output voltage, current: DC2.4V-24V; 50-1000mA; 5W max.

5. Interface Output: With Wire or USB Interface (DC Header can be customized according to customer needs)

4. Working mode: Constant voltage or constant current.

5. Energy efficiency: ErP, EMPS, CEC, DOE.

6. Pin types: US/JAPAN, EUROPE, UK/HK, AUSTRALIA

7. Safety standards: IEC/EN 60950, IEC/EN 61558, IEC/EN 60335, FCC, UL-60950, AS/NZS 61558, PSE.

8. Applicable to: digital products, audio equipment, communications products, electric toys and other fields.

Various specifications and models of adapters can be customized according to customer requirement

InputRated Input Voltage100Vac TO 240VacRated Input Frequency50/60Hz
Input Voltage Range90Vac TO 264Vac
Input Current1000mA max.at 100-240Vac Input
EfficiencyErP Directive (2009/125/CE);
Australia Minimum Energy Performance Standards (MEPS) AS/NZS4665-2005;
California Appliance efficiency Regulation(CEC)CEC-400-2009-013;
Energy Star;
 Voltage(VO)DC 2.4-24V
 Output Regulation±5%@constant Voltage Mode
OutputOurrent Regulation±5%@constant Current Mode
 Current limit1000mA max @2.4-24V,5W max
 Ripple and Noise300mVp-p max @20MHz Bandwidth 47uF Ele.Cap.+0.1uF Cer.Cap.
 Maxinum Power(PO)5W max @ DC 2.4-24V
 Hold-up Time10ms Typical At Full Load@ 115v
 ProtectionOver-current Protection; short-circuit Protection; Over-voltage Protection
 DC CableLength of output DC cable 50--180cm
 USBUSB socket
EMCEMIFCC CLASS B;CISRP22 CLASS B;EN55022,;EN55014.
 EMSIEC61000-4-2,3,4,5,6,8,11
EnvironmentalOperation Temperature0℃ to 40℃ ambient
 Storage Temperature-10℃ to 70℃

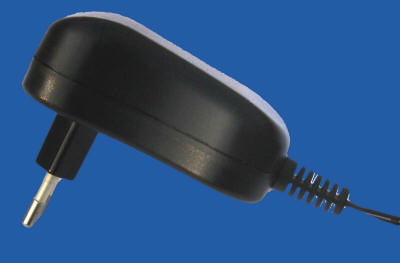

8.5W Series
1. Small size, streamlined, fully sealed, easy to carry.
2. Built-in over-voltage, over-current and short-circuit protection.
3. Wide range input: 100-240V, 50/60Hz
4. Rated output voltage, current: DC2.4V-30V; 50-1500mA; 8.5W max.
5. Interface Output: With Wire or USB Interface (DC Header can be customized according to customer needs)
6. Working mode: Constant voltage or constant current.
7. Energy efficiency: ErP, EMPS, CEC, DOE.
8. Pin types: US/JAPAN, EUROPE, UK/HK, AUSTRALIA
9. Safety standards: IEC/EN 60950, IEC/EN 61558, IEC/EN 60335, FCC, UL-60950, AS/NZS 61558, PSE.
10. Applicable to: digital products, audio equipment, communications products, electric toys and other fields.
Various specifications and models of adapters can be customized according to customer requirements
InputRated Input Voltage100Vac TO 240VacRated Input Frequency50/60Hz
Input Voltage Range90Vac TO 264Vac
Input Current1500mA max.at 100-240Vac Input
EfficiencyErP Directive (2009/125/CE);
Australia Minimum Energy Performance Standards (MEPS) AS/NZS4665-2005;
California Appliance efficiency Regulation(CEC)CEC-400-2009-013;
Energy Star;
 Voltage(VO)DC 2.4-30V
 Output Regulation±5%@constant Voltage Mode
OutputOurrent Regulation±5%@constant Current Mode
 Current limit1500mA max @2.4-30V,8.5W max
 Ripple and Noise300mVp-p max @20MHz Bandwidth 47uF Ele.Cap.+0.1uF Cer.Cap.
 Maxinum Power(PO)8.5W max @ DC 2.4-30V
 Hold-up Time10ms Typical At Full Load@ 115v
 ProtectionOver-current Protection; short-circuit Protection; Over-voltage Protection
 DC CableLength of output DC cable 50--180cm
 USBN/A
EMCEMIFCC CLASS B;CISRP22 CLASS B;EN55022,;EN55014.
 EMSIEC61000-4-2,3,4,5,6,8,11
SafetyIEC/EN 60950,IEC/EN 61558,IEC/EN 60335,FCC, UL-60950,AS/ NZS 61558,PSE.
EnvironmentalOperation Temperature0℃ to 40℃ ambient
 Storage Temperature-10℃ to 70℃
EN 60335-2-29 Standard requirements:
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
Dieses Gerät kann von Kindern ab 8 Jahren verwendet werden. Es kann ebenfalls von Personen mit verminderten körperlichen, sensorischen und geistigen Fähigkeiten oder mangelnder Erfahrung und Wissen benutzt werden, wenn sie beaufsichtigt werden oder im sicheren Umgang des Gerätes unterwiesen wurden und eine mögliche Gefährdung bei falscher Benutzung des Gerätes verstehen.

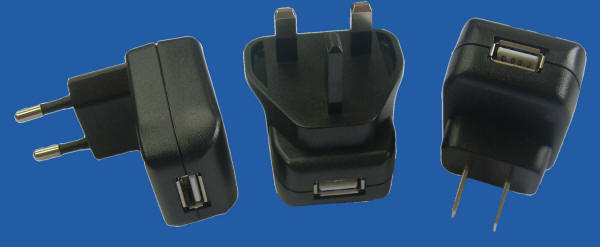

12W Series

1. Small size, streamlined, fully sealed, easy to carry.

2. Built-in over-voltage, over-current and short-circuit protection.

3. Wide range input: 100-240V, 50/60Hz

4. Rated output voltage, current: DC2.4V-30V; 50-2000mA; 12W max.

5. Interface Output: With Wire or USB Interface (DC Header can be customized according to customer needs)

4. Working mode: Constant voltage or constant current.

5. Energy efficiency: ErP, EMPS, CEC, DOE.

6. Pin types: US/JAPAN, EUROPE, UK/HK, AUSTRALIA

7. Safety standards: IEC/EN 60950, IEC/EN 61558, IEC/EN 60335, FCC, UL-60950, AS/NZS 61558, PSE.

8. Applicable to: digital products, audio equipment, communications products, electric toys and other fields.

Various specifications and models of adapters can be customized according to customer requirements

InputRated Input Voltage100Vac TO 240VacRated Input Frequency50/60Hz
Input Voltage Range90Vac TO 264Vac
Input Current2000mA max.at 100-240Vac Input
EfficiencyErP Directive (2009/125/CE);
       Australia Minimum Energy Performance Standards (MEPS) AS/NZS4665-2005;
       California Appliance efficiency Regulation(CEC)CEC-400-2009-013;
       Energy Star;
 Voltage(VO)DC 2.4-30V
 Output Regulation±5%@constant Voltage Mode
OutputOurrent Regulation±5%@constant Current Mode
 Current limit2300mA max @2.4-30V,14.4W max
 Ripple and Noise300mVp-p max @20MHz Bandwidth 47uF Ele.Cap.+0.1uF Cer.Cap.
 Maxinum Power(PO)14.5W max @ DC 2.4-30V
 Hold-up Time10ms Typical At Full Load@ 115v
 ProtectionOver-current Protection; short-circuit Protection; Over-voltage Protection
 DC CableLength of output DC cable 50--180cm
 USBN/A
EMCEMIFCC CLASS B;CISRP22 CLASS B;EN55022,;EN55014.
 EMSIEC61000-4-2,3,4,5,6,8,11
SafetyIEC/EN 60950,IEC/EN 61558,IEC/EN 60335,FCC, UL-60950,AS/ NZS 61558,PSE.
EnvironmentalOperation Temperature0℃ to 40℃ ambient
 Storage Temperature-10℃ to 70℃

EN 60335-2-29 Standard requirements:
    This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Dieses Gerät kann von Kindern ab 8 Jahren verwendet werden. Es kann ebenfalls von Personen mit verminderten körperlichen, sensorischen und geistigen Fähigkeiten oder mangelnder Erfahrung und Wissen benutzt werden, wenn sie beaufsichtigt werden oder im sicheren Umgang des Gerätes unterwiesen wurden und eine mögliche Gefährdung bei falscher Benutzung des Gerätes verstehen.

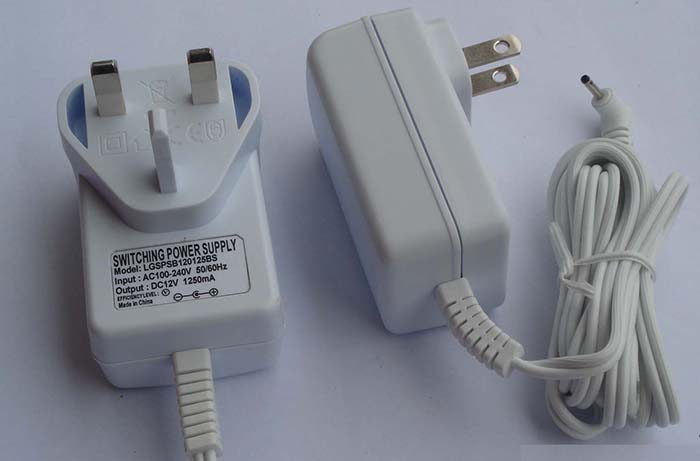

15W Series


1. Small size, streamlined, fully sealed, easy to carry.
2. Built-in over-voltage, over-current and short-circuit protection.
3. Wide range input: 100-240V, 50/60Hz
4. Rated output voltage, current: DC2.4V-36V; 50-2300mA; 15W max.
5. Interface Output: With Wire or USB Interface (DC Header can be customized according to customer needs)
6. Working mode: Constant voltage or constant current.
7. Energy efficiency: ErP, EMPS, CEC, DOE.
8. Pin types: US/JAPAN, EUROPE, UK/HK, AUSTRALIA
9. Safety standards: IEC/EN 60950, IEC/EN 61558, IEC/EN 60335, FCC, UL-60950, AS/NZS 61558, PSE.
10. Applicable to: digital products, audio equipment, communications products, electric toys and other fields.
Various specifications and models of adapters can be customized according to customer requirements.

                Input                Rated Input Voltage                100Vac TO 240Vac                Rated Input Frequency                50/60Hz
                Input Voltage Range                90Vac TO 264Vac
                Input Current                2300mA max.at 100-240Vac Input
                Efficiency                ErP Directive (2009/125/CE);
Australia Minimum Energy Performance Standards (MEPS) AS/NZS4665-2005;
California Appliance efficiency Regulation(CEC)CEC-400-2009-013;
Energy Star;
                 Voltage(VO)                DC 2.4-36V
                 Output Regulation                ±5%@constant Voltage Mode
                Output                Ourrent Regulation                ±5%@constant Current Mode
                 Current limit                2300mA max @2.4-36V,15W max
                 Ripple and Noise                300mVp-p max @20MHz Bandwidth 47uF Ele.Cap.+0.1uF Cer.Cap.
                 Maxinum Power(PO)                15W max @ DC 2.4-36V
                 Hold-up Time                10ms Typical At Full Load@ 115v
                 Protection                Over-current Protection; short-circuit Protection; Over-voltage Protection
                 DC Cable                Length of output DC cable 50--180cm
                 USB                N/A
                EMC                EMI                FCC CLASS B;CISRP22 CLASS B;EN55022,;EN55014.
                 EMS                IEC61000-4-2,3,4,5,6,8,11
                Safety                IEC/EN 60950,IEC/EN 61558,IEC/EN 60335,FCC, UL-60950,AS/ NZS 61558,PSE.
                Environmental                Operation Temperature                0℃ to 40℃ ambient
                 Storage Temperature                -10℃ to 70℃
                  EN 60335-2-29 Standard requirements:
 This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

                     Dieses Gerät kann von Kindern ab 8 Jahren verwendet werden. Es kann ebenfalls von Personen mit verminderten körperlichen, sensorischen und geistigen Fähigkeiten oder mangelnder Erfahrung und Wissen benutzt werden, wenn sie beaufsichtigt werden oder im sicheren Umgang des Gerätes unterwiesen wurden und eine mögliche Gefährdung bei falscher Benutzung des Gerätes verstehen.

18W Series

1. Small size, streamlined, fully sealed, easy to carry.
               2. Built-in over-voltage, over-current and short-circuit protection.
               3. Wide range input: 100-240V, 50/60Hz
               4. Rated output voltage, current: DC3V-30V; 50-2300mA; 2max.
               5. Interface Output: With Wire or USB Interface (DC Header can be customized according to customer needs)
               6. Working mode: Constant voltage or constant current.
               7. Energy efficiency: ErP, EMPS, CEC, DOE.
               8. Pin types: US/JAPAN, EUROPE, UK/HK, AUSTRALIA
               9. Safety standards: IEC/EN 60950, IEC/EN 61558, IEC/EN 60335, FCC, UL-60950, AS/NZS 61558, PSE.
               10. Applicable to: digital products, audio equipment, communications products, electric toys and other fields.
               Various specifications and models of adapters can be customized according to customer requirements.

                Input                Rated Input Voltage                100Vac TO 240Vac                Rated Input Frequency                50/60Hz
                Input Voltage Range                90Vac TO 264Vac
                Input Current                3000mA max.
at 100-240Vac Input
                Efficiency                ErP Directive (2009/125/CE);
Australia Minimum Energy Performance Standards (MEPS) AS/NZS4665-2005;
California Appliance efficiency Regulation(CEC)CEC-400-2009-013;
Energy Star;
                 Voltage(VO)                DC 3-30V
                 Output Regulation                ±5%@constant Voltage Mode
                Output                Ourrent Regulation                ±5%@constant Current Mode
                 Current limit                3000mA max @3-30V,18W max
                 Ripple and Noise                300mVp-p max @20MHz Bandwidth 47uF Ele.Cap.+0.1uF Cer.Cap.
                 Maxinum Power(PO)                18W max @ DC 3-30V
                 Hold-up Time                10ms Typical At Full Load@ 115v
                 Protection                Over-current Protection; short-circuit Protection; Over-voltage Protection
                 DC Cable                Length of output DC cable 50--180cm
                 USB                N/A
                EMC                EMI                FCC CLASS B;CISRP22 CLASS B;EN55022,;EN55014.
                 EMS                IEC61000-4-2,3,4,5,6,8,11
                Safety                IEC/EN 60950,IEC/EN 61558,IEC/EN 60335,FCC, UL-60950,AS/ NZS 61558,PSE.
                Environmental                Operation Temperature                0℃ to 40℃ ambient
                 Storage Temperature                -10℃ to 70℃

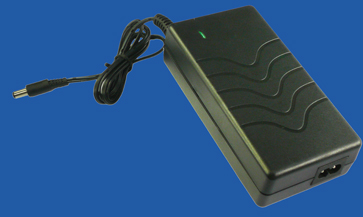

28W Series

1. Small size, streamlined, fully sealed, easy to carry.
                 2. Built-in over-voltage, over-current and short-circuit protection.
                 3. Wide range input: 100-240V, 50/60Hz
                 4. Rated output voltage, current: DC3V-36V; 50-4000mA; 28W max.
                 5. Interface Output: With Wire or USB Interface (DC Header can be customized according to customer needs)
                 6. Working mode: Constant voltage or constant current.
                 7. Energy efficiency: ErP, EMPS, CEC, DOE.
                 8. Pin types: US/JAPAN, EUROPE, UK/HK, AUSTRALIA
                 9. Safety standards: IEC/EN 60950, IEC/EN 61558, IEC/EN 60335, FCC, UL-60950, AS/NZS 61558, PSE.
                 10. Applicable to: digital products, audio equipment, communications products, electric toys and other fields.
               Various specifications and models of adapters can be customized according to customer requirements.

InputRated Input Voltage100Vac TO 240VacRated Input Frequency50/60Hz
Input Voltage Range90Vac TO 264Vac
Input Current4000mA max.
       at 100-240Vac Input
EfficiencyErP Directive (2009/125/CE);
       Australia Minimum Energy Performance Standards (MEPS) AS/NZS4665-2005;
       California Appliance efficiency Regulation(CEC)CEC-400-2009-013;
       Energy Star;
 Voltage(VO)DC 3-36V
 Output Regulation±5%@constant Voltage Mode
OutputOurrent Regulation±5%@constant Current Mode
 Current limit4000mA max @3-30V,28W max
 Ripple and Noise300mVp-p max @20MHz Bandwidth 47uF Ele.Cap.+0.1uF Cer.Cap.
 Maxinum Power(PO)28W max @ DC 3-36V
 Hold-up Time10ms Typical At Full Load@ 115v
 ProtectionOver-current Protection; short-circuit Protection; Over-voltage Protection
 DC CableLength of output DC cable 50--180cm
 USBN/A
EMCEMIFCC CLASS B;CISRP22 CLASS B;EN55022,;EN55014.
 EMSIEC61000-4-2,3,4,5,6,8,11
SafetyIEC/EN 60950,IEC/EN 61558,IEC/EN 60335,FCC, UL-60950,AS/ NZS 61558,PSE.
EnvironmentalOperation Temperature0℃ to 40℃ ambient
 Storage Temperature-10℃ to 70℃
36W Series

1. Small size, streamlined, fully sealed, easy to carry.
2. Built-in over-voltage, over-current and short-circuit protection.
3. Wide range input: 100-240V, 50/60Hz
4. Rated output voltage, current: DC5V-36V; 50-5000mA; 36W max.
5. Interface Output: With Wire or USB Interface (DC Header can be customized according to customer needs)
6. Working mode: Constant voltage or constant current.
7. Energy efficiency: ErP, EMPS, CEC, DOE.
8. Pin types: US/JAPAN, EUROPE, UK/HK, AUSTRALIA
9. Safety standards: IEC/EN 60950, IEC/EN 61558, IEC/EN 60335, FCC, UL-60950, AS/NZS 61558, PSE.
10. Applicable to: digital products, audio equipment, communications products, electric toys and other fields.
Various specifications and models of adapters can be customized according to customer requirements

InputRated Input Voltage100Vac TO 240VacRated Input Frequency50/60Hz
Input Voltage Range90Vac TO 264Vac
Input Current4000mA max.
       at 100-240Vac Input
EfficiencyErP Directive (2009/125/CE);
       Australia Minimum Energy Performance Standards (MEPS) AS/NZS4665-2005;
       California Appliance efficiency Regulation(CEC)CEC-400-2009-013;
       Energy Star;
 Voltage(VO)DC 3-36V
 Output Regulation±5%@constant Voltage Mode
OutputOurrent Regulation±5%@constant Current Mode
 Current limit4000mA max @3-30V,28W max
 Ripple and Noise300mVp-p max @20MHz Bandwidth 47uF Ele.Cap.+0.1uF Cer.Cap.
 Maxinum Power(PO)28W max @ DC 3-36V
 Hold-up Time10ms Typical At Full Load@ 115v
 ProtectionOver-current Protection; short-circuit Protection; Over-voltage Protection
 DC CableLength of output DC cable 50--180cm
 USBN/A
EMCEMIFCC CLASS B;CISRP22 CLASS B;EN55022,;EN55014.
 EMSIEC61000-4-2,3,4,5,6,8,11
SafetyIEC/EN 60950,IEC/EN 61558,IEC/EN 60335,FCC, UL-60950,AS/ NZS 61558,PSE.
EnvironmentalOperation Temperature0℃ to 40℃ ambient
 Storage Temperature-10℃ to 70℃
65W Series

1. Small size, streamlined, fully sealed, easy to carry.

2. Built-in over-voltage, over-current and short-circuit protection.

3. Wide range input: 100-240V, 50/60Hz

4. Rated output voltage, current: DC3V-36V; 50-6000mA; 65W max.

5. Interface Output: With Wire or USB Interface (DC Header can be customized according to customer needs)

6. Working mode: Constant voltage or constant current.

7. Energy efficiency: ErP, EMPS, CEC, DOE.

8. Pin types: US/JAPAN, EUROPE, UK/HK, AUSTRALIA

9. Safety standards: IEC/EN 60950, IEC/EN 61558, IEC/EN 60335, FCC, UL-60950, AS/NZS 61558, PSE.

10. Applicable to: digital products, audio equipment, communications products, electric toys and other fields.

Various specifications and models of adapters can be customized according to customer requirements.

InputRated Input Voltage100Vac TO 240VacRated Input Frequency50/60Hz
Input Voltage Range90Vac TO 264Vac
Input Current6000mA max.
       at 100-240Vac Input
EfficiencyErP Directive (2009/125/CE);
       Australia Minimum Energy Performance Standards (MEPS) AS/NZS4665-2005;
       California Appliance efficiency Regulation(CEC)CEC-400-2009-013;
       Energy Star;
 Voltage(VO)DC 3-36V
 Output Regulation±5%@constant Voltage Mode
OutputOurrent Regulation±5%@constant Current Mode
 Current limit6000mA max @3-30V,65W max
 Ripple and Noise300mVp-p max @20MHz Bandwidth 47uF Ele.Cap.+0.1uF Cer.Cap.
 Maxinum Power(PO)65W max @ DC 3-36V
 Hold-up Time10ms Typical At Full Load@ 115v
 ProtectionOver-current Protection; short-circuit Protection; Over-voltage Protection
 DC CableLength of output DC cable 50--180cm
 USBN/A
EMCEMIFCC CLASS B;CISRP22 CLASS B;EN55022,;EN55014.
 EMSIEC61000-4-2,3,4,5,6,8,11
SafetyIEC/EN 60950,IEC/EN 61558,IEC/EN 60335,FCC, UL-60950,AS/ NZS 61558,PSE.
EnvironmentalOperation Temperature0℃ to 40℃ ambient
 Storage Temperature-10℃ to 70℃
90W Series

1. Small size, streamlined, fully sealed, easy to carry.
2. Built-in over-voltage, over-current and short-circuit protection.
3. Wide range input: 100-240V, 50/60Hz
4. Rated output voltage, current: DC12V-36V; 50-8000mA; 90W max.
5. Interface Output: With Wire or USB Interface (DC Header can be customized according to customer needs)
6. Working mode: Constant voltage or constant current.
7. Energy efficiency: ErP, EMPS, CEC, DOE.
8. Pin types: US/JAPAN, EUROPE, UK/HK, AUSTRALIA
9. Safety standards: IEC/EN 60950, IEC/EN 61558, IEC/EN 60335, FCC, UL-60950, AS/NZS 61558, PSE.
10. Applicable to: digital products, audio equipment, communications products, electric toys and other fields.
Various specifications and models of adapters can be customized according to customer requirements.

InputRated Input Voltage100Vac TO 240VacRated Input Frequency50/60Hz
Input Voltage Range90Vac TO 264Vac
Input Current8000mA max.
       at 100-240Vac Input
EfficiencyErP Directive (2009/125/CE);
       Australia Minimum Energy Performance Standards (MEPS) AS/NZS4665-2005;
       California Appliance efficiency Regulation(CEC)CEC-400-2009-013;
       Energy Star;
 Voltage(VO)DC 12-36V
 Output Regulation±5%@constant Voltage Mode
OutputOurrent Regulation±5%@constant Current Mode
 Current limit8000mA max @3-30V,65W max
 Ripple and Noise300mVp-p max @20MHz Bandwidth 47uF Ele.Cap.+0.1uF Cer.Cap.
 Maxinum Power(PO)90W max @ DC 12-36V
 Hold-up Time10ms Typical At Full Load@ 115v
 ProtectionOver-current Protection; short-circuit Protection; Over-voltage Protection
 DC CableLength of output DC cable 50--180cm
 USBN/A
EMCEMIFCC CLASS B;CISRP22 CLASS B;EN55022,;EN55014.
 EMSIEC61000-4-2,3,4,5,6,8,11
SafetyIEC/EN 60950,IEC/EN 61558,IEC/EN 60335,FCC, UL-60950,AS/ NZS 61558,PSE.
EnvironmentalOperation Temperature0℃ to 40℃ ambient
 Storage Temperature-10℃ to 70℃
Changable AC plug Series

1.小体积,流线型,全密封,携带方便。
2.内置过压、过流和短路保护。
3.宽范围输入: 100-240V,50/60Hz
4.额定输出电压,电流: DC2.4V-30V; 50-1500mA; 15W max.
5. 接口输出：带线或带USB接口 （可根据客户需求订做DC头）
4.工作模式:恒压或恒流。
5.符合能效:ErP,EMPS,CEC,DOE。
6.插脚类型:US/JAPAN,EUROPE,UK/HK,AUSTRALIA
7.安规标准:IEC/EN 60950,IEC/EN 61558,IEC/EN 60335,FCC, UL-60950,AS/ NZS 61558,PSE.
8. 适用于: 数码产品，音响设备，通信产品,电动玩具等领域
可按客户要求订做各种规格型号适配器

InputRated Input Voltage100Vac TO 240VacRated Input Frequency50/60Hz
Input Voltage Range90Vac TO 264Vac
Input Current1500mA max.at 100-240Vac Input
EfficiencyErP Directive (2009/125/CE);
Australia Minimum Energy Performance Standards (MEPS) AS/NZS4665-2005;
California Appliance efficiency Regulation(CEC)CEC-400-2009-013;
Energy Star;
 Voltage(VO)DC 2.4-24V
 Output Regulation±5%@constant Voltage Mode
OutputOurrent Regulation±5%@constant Current Mode
 Current limit1500mA max @2.4-30V,15W max
 Ripple and Noise300mVp-p max @20MHz Bandwidth 47uF Ele.Cap.+0.1uF Cer.Cap.
 Maxinum Power(PO)15W max @ DC 2.4-30V
 Hold-up Time10ms Typical At Full Load@ 115v
 ProtectionOver-current Protection; short-circuit Protection; Over-voltage Protection
 DC CableLength of output DC cable 50--180cm
 USBUSB socket
EMCEMIFCC CLASS B;CISRP22 CLASS B;EN55022,;EN55014.
 EMSIEC61000-4-2,3,4,5,6,8,11
SafetyIEC/EN 60950,IEC/EN 61558,IEC/EN 60335,FCC, UL-60950,AS/ NZS 61558,PSE.
EnvironmentalOperation Temperature0℃ to 40℃ ambient
 Storage Temperature-10℃ to 70℃
HomeAbout Us Products Safety Certification Album News Contact

LYGO INTERNATIONAL HOLDING LIMITED.  Copyright   lygo.com.hk   E-mail : sales@lygo.com.hk    Tel : ( 852 ) 2664 4767

LYGO INTERNATIONAL HOLDING LIMITED.  Copyright

sales@lygo.com.hk  ( 852 ) 2664 4767

E-mail
Phone
